SpiroConnect®
PC-based spirometer
SpiroConnect® is a highly accurate PC-based spirometer. With proven turbine technology and a range of innovative enhancements, it’s the perfect solution for occupational health and primary care.
Including the latest Bluetooth technology, the device connects wirelessly to a PC, laptop or tablet, making it ideal for mobile spirometry.
Software

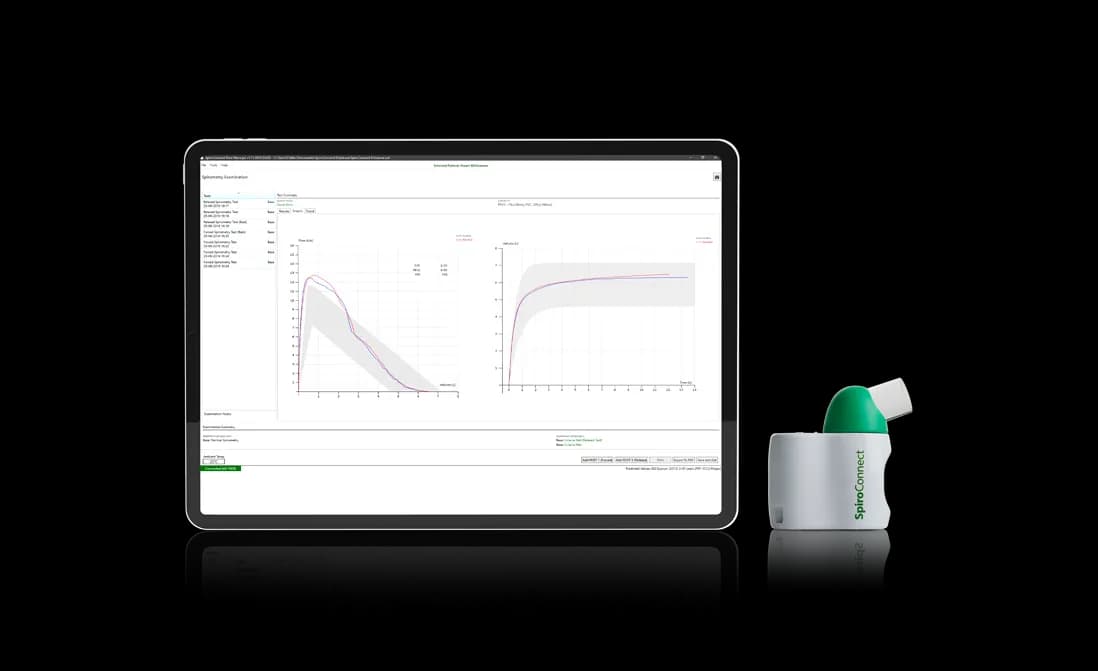

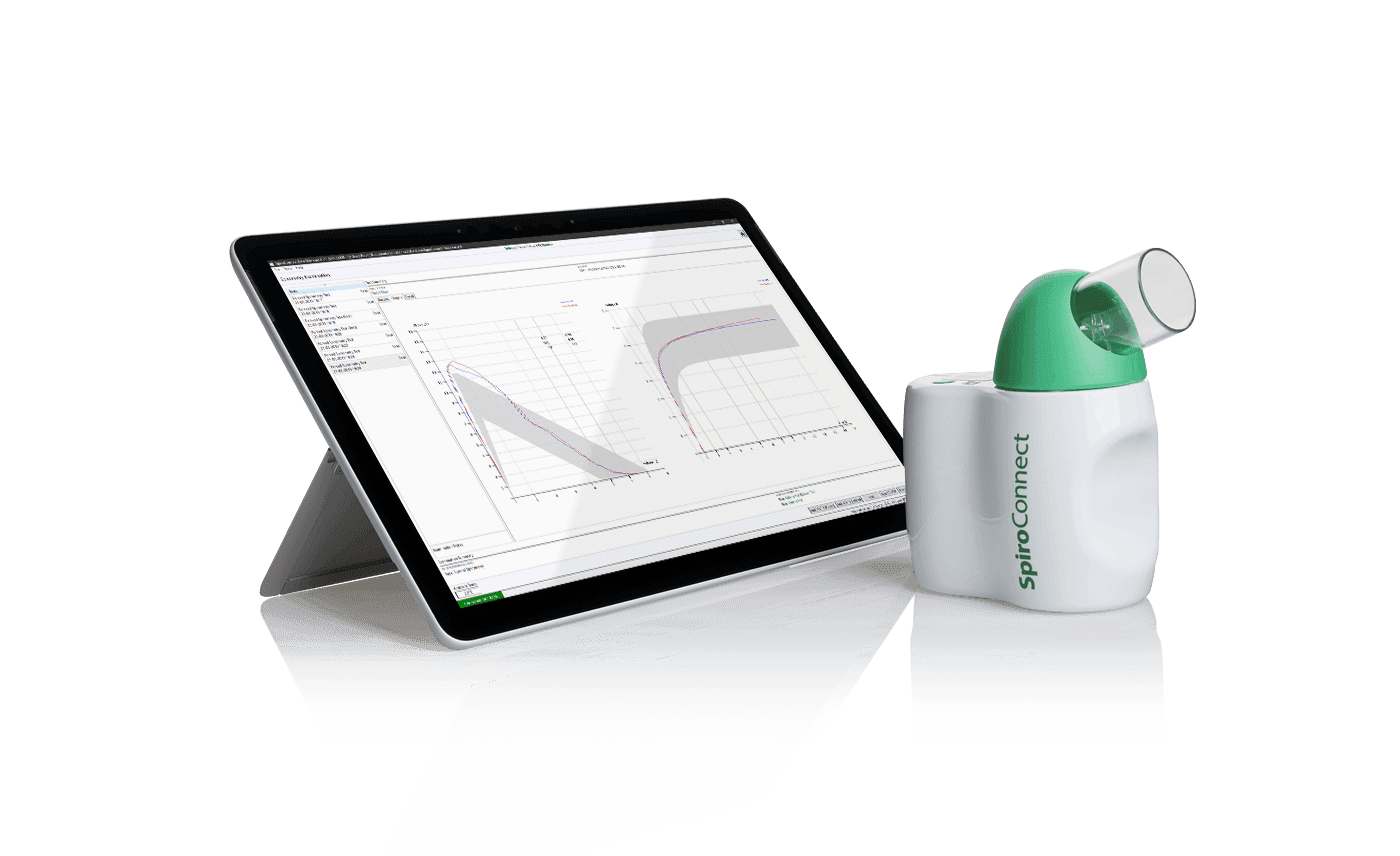

The user-friendly DataManager software provides real-time spirometry graphs (volume time and flow/volume) to ensure that lung function tests are completed accurately and any sub-optimal manoeuvres are easily identified. Test results are held within the software for review and can be easily exported in a single-click. The software can also be integrated with a number of Electronic Medical Record (EMR) applications for a seamless and paperless spirometry programme.
Key features
- Wireless Bluetooth connection
- PC or tablet based
- Includes GLI predicted values
- Quick and easy to clean and sterilise
- Innovative vertical turbine for increased flow rate sensitivity
- ATR/ERS 2019 guideline complaint
Measurement & interpretation
Key spirometry parameters are calculated including FEV1, FVC, PEF, VC, FEV1/FVC and FEF 25-75% alongside numerical data for predicted, measured and percentage difference. Interpretation is automatically calculated and can include the Global lung initiative (GLI). The supplied software will also calculate and interpret according to the ATS/ERS 2019 guidelines update on the standardisation of spirometry.
Hygiene
The SpiroConnect® should be used with Bacterial viral filter (BVF) mouthpieces for an enhanced, safe and hygienic spirometry programme. Providing complete reassurance to the subject.
Portability
Handheld and weighing only 200g (0.44lbs) makes the SpiroConnect® the perfect option for both accurate and mobile respiratory screening.
Request more information
Included
- SpiroConnect® PC software
- USB Bluetooth dongle
- PeraSafe sterilising agent
- Padded weave transit case
Optional
- 3L calibration syringe
Consumables
High-quality consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of your equipment.
CPT codes
94375: respiratory flow volume loop
94200: maximal voluntary ventilation
94010: spirometry complete
The SpiroConnect® is manufactured by Numed Healthcare and is distributed by Amplivox Ltd. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
