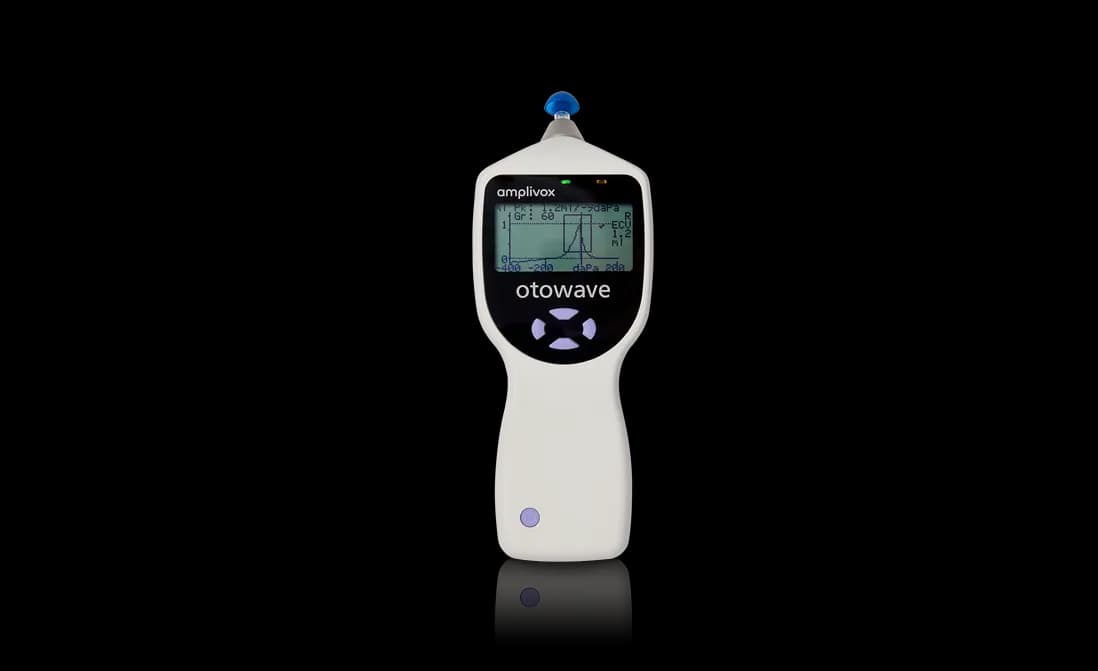

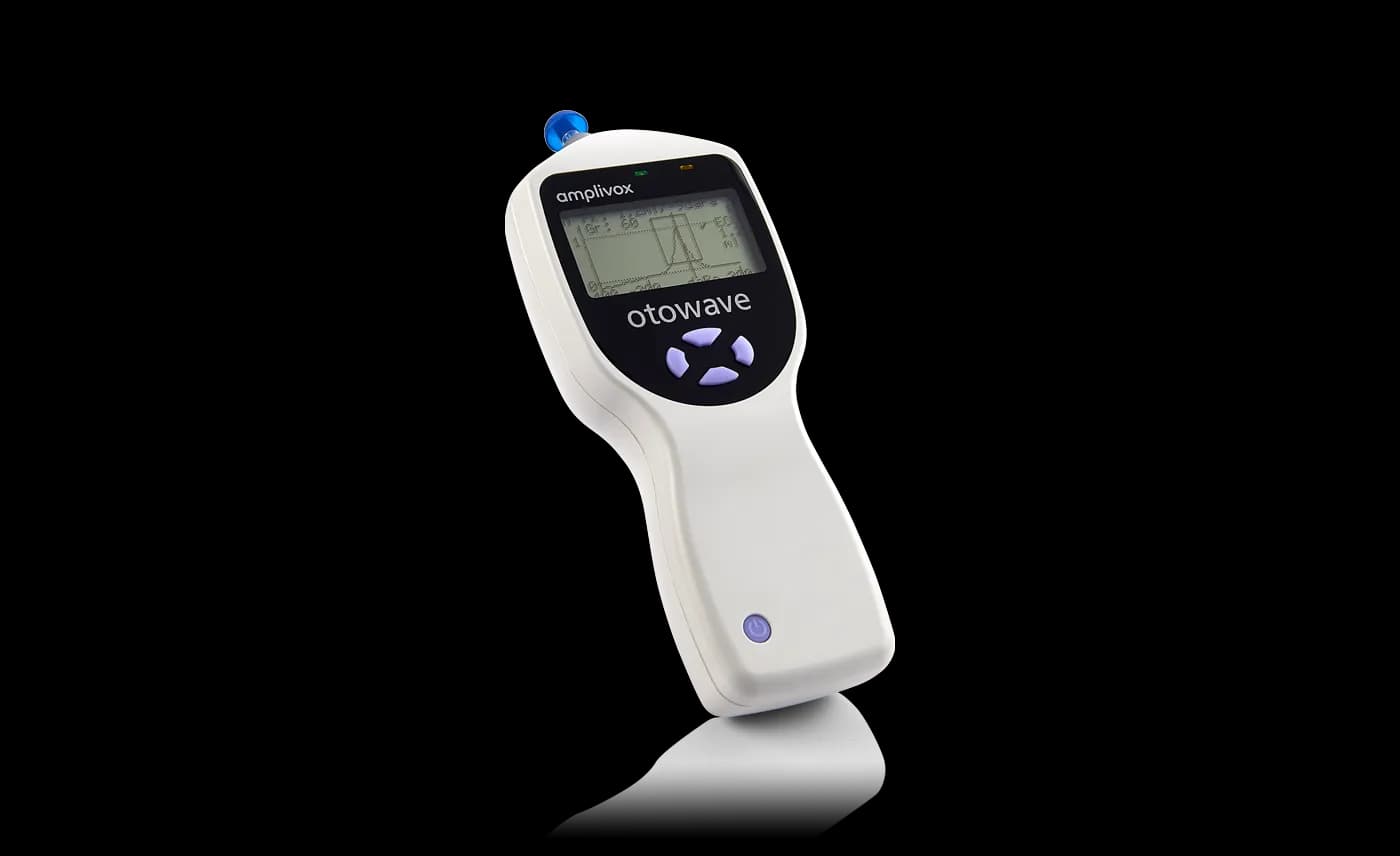

Otowave 102-1 & 102-4
Handheld portable tympanometers
Intuitive handheld screening tympanometers for reliable and accurate middle ear measurements. The efficiency and ease of use of the Otowave 102 can help to reduce consultation times, making it the ideal choice for many audiology, ENT and hearing healthcare professionals.
The perfect choice for screening children who may be suffering from ear infections within the eustachian tube and middle ear, such as otitis media (glue ear) and other hearing loss disorders.
Ease-of-use
The Otowave 102 is intuitive to use, with on-screen test data that is displayed in real time. It is ideal for those who require fast results as screening tympanometry only takes a few seconds with the automatic pass/ refer result evaluation. Ipsi lateral reflex tests can also be programmed into the test protocol so that it runs concurrently.
Key features
- Fast and accurate middle ear measurements
- Intuitive and ergonomic design
- Large LCD graphics display
- Programmable ipsilateral reflex tests
- Optional portable printer and PC interface
- Multiple language options
- Internal memory
- PC connectivity to Noah applications with optional iRDA port
- Compact, lightweight and portable
Data management
With the added benefit of an internal memory function, test results can be printed immediately or saved for future processing using the supplied Amplisuite software. The tympanometer also offers single-click integration to third-party Electronic Medical Record (EMR) systems such as NOAH, Auditbase and OtoAccess®. This enables the seamless transfer of results and data, for exceptional workflow efficiency.
Ergonomic design
Tests can be completed with confidence and accuracy due to the elegant shape which follows the contours of the hand, combined with a perfect weight distribution.
The Otowave 102 also provides an effortless testing experience with a large LCD screen for viewing the live tymp display, and simple four-key button layout.
Portability
Weighing only 380g (0.8lbs), the design allows for complete portability.
Powered by AA batteries which can be easily exchanged in the field, travelling audiologists can have confidence that they are providing reliable measurements in both mobile and clinic based audiological environments.
Request more information
Included
- Eartip selection box
- Test cavities (4)
- AA batteries (4)
- Spare probe tips and gaskets
- Carry case
- Manual & software (available via website download)
Optional
- Portable printer
- Infra red IrDA cable (PC connection required)
- Rechargeable batteries
- Eartips
- OtoAccess® database
Consumables
High-quality consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of your equipment.
CPT codes
92567: Tympanometry (impedance testing)
92568: Acoustic reflex testing; threshold
92550: Tympanometry and reflex threshold measurements
Standards
Tympanometer Type 2
IEC 60601-1
IEC 60601-1-2
IEC 60645-5/ ANSI S3.39
Two year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
