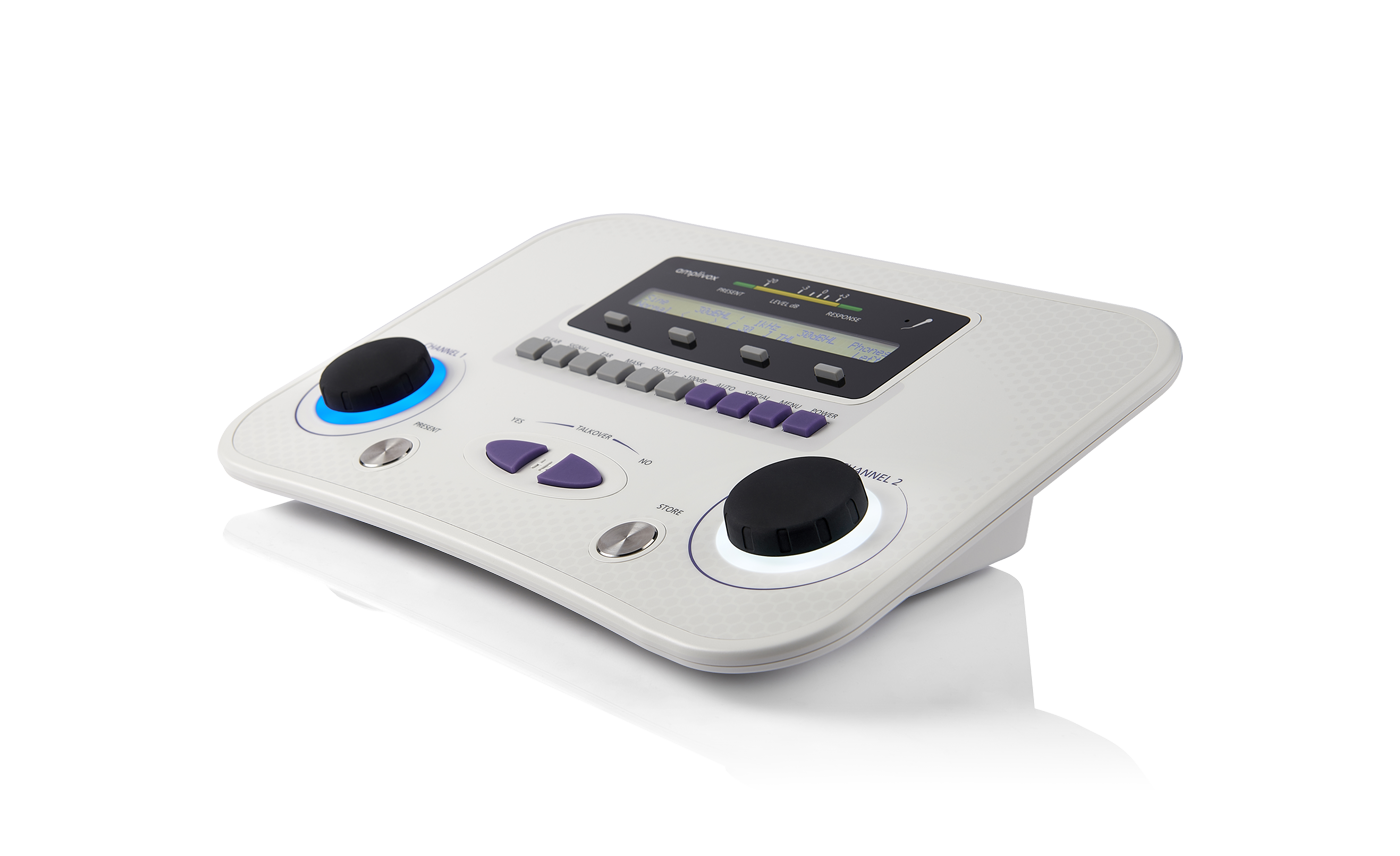

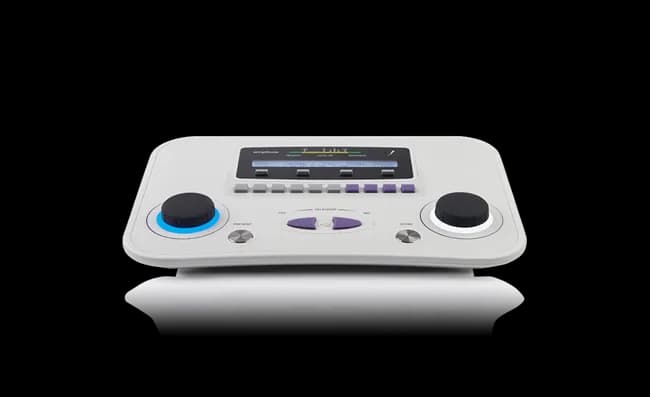

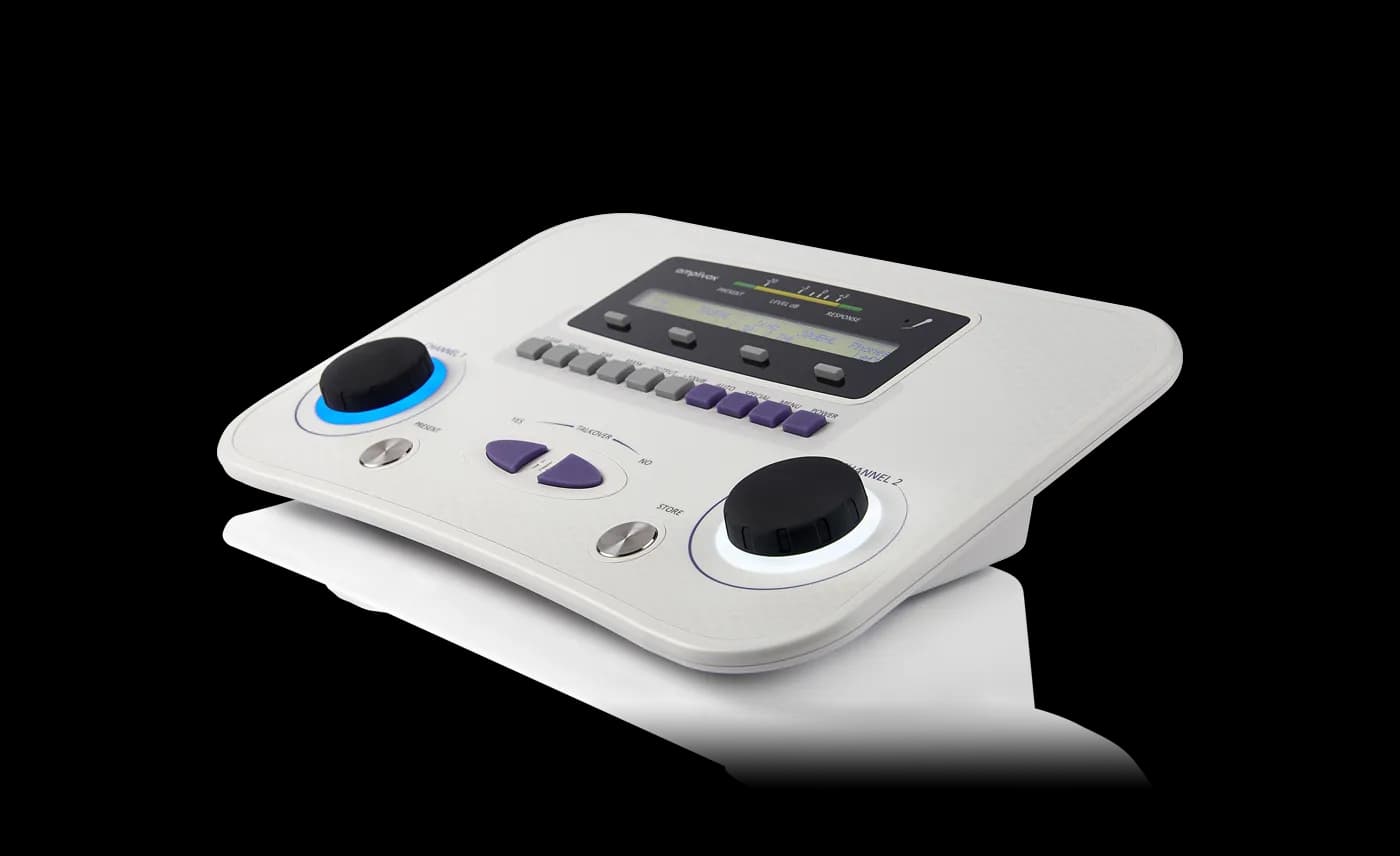

Model 270+
Advanced diagnostic audiometer
A powerful diagnostic audiometer with enhanced technology for ease of use, accurate testing and reduced consultation times. Combining familiar features with additional functionality, the Model 270+ is the perfect audiometer to run a modern audiology service.
Measurement options
Manual and automatic testing is available for air (Hughson Westlake and Békésy) and bone conduction, along with intuitive tools that enable users to determine hearing loss issues quickly and efficiently to establish next step rehabilitation. The system can also perform speech testing through MP3, CD and live microphone input.
Key features
- Tone audiometry (AC, BC, pure tone, warble tone, pulsed tone)
- Narrowband and speech weighted masking
- Automatic AC and BC testing including automatic masking
- Speech audiometry (line-input from MP3 / CD and live via microphone)
- Masking assistant
- Free-field functionality
- Special tests: ABLB, Stenger, SISI, Tone decay, HLS, MHA
Masking assistant
The integrated masking assistant function informs the operator when to apply masking whilst also assessing the level of masking as either ideal, too loud, or too soft. This ensures a completely accurate measurement. When required, the Model 270+ can also be set to automated testing where it will apply masking levels automatically, for both air and bone conduction.
Enhanced technology
Including premium-quality rotary controls, silent touch buttons, and light ring indicators identifying the selected ear, the Model 270+ offers a quick and simple testing experience.
Compact footprint
Compact and lightweight at only 1400g (3.08lbs), combined with a custom carry case makes the Model 270+ the perfect tool for both in-clinic, and mobile audiometry.
Ergonomic design
With a logical (left-to-right) six key layout for defining test routines, the instrument seamlessly guides operators, making it ideal for those new to testing, as well as seasoned professionals.
Special tests
The Model 270+ includes key clinical tests required for a deeper investigation of hearing issues (e.g. SISI, Tone Decay and ABLB). Additional counselling tools such as Hearing Loss Simulator (HLS) and Master Hearing Aid (MHA) enable the operator to provide class-leading patient care.
Request more information
Included
- Standard audiometric headset
- Bone conduction headset
- Patient response switch
- Power supply with country adaptors
- Audiogram cards (50)
- Carry case
- USB cable (PC connection)
- Manual & software (available via website download)
Optional
- Amplivox Audiocups (noise-reducing enclosures)
- Masking earpiece
- Insert earphones
- Thermal printer
- Booth leads
- OtoAccess® database
- Patient microphone
- Loudspeakers
- Monitor headset and microphone
- MP3 player with wordlists
- USB portable power bank (external)
Consumables
High-quality consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of your equipment.
Specifications
Frequency range: 125 - 8000Hz
Attenuation range: -10 - 120 dBHL
Transducer: DD45. Second calibrated headset may be added including IP30 or TDH39 earphones
CPT codes
92552: Pure tone audiometry (threshold); air only
92553: Pure tone audiometry (threshold); air and bone
92557: Comprehensive audiometry threshold evaluation and speech recognition
92562: Loudness balance test, alternate binaural or monaural
92563: Tone decay test
92565: Stenger test, pure tone
92579: Visual reinforcement audiometry (VRA)
92582: Conditioning play audiometry
Standards
Audiometer Type 3BE/Type 2
IEC 60601-1
IEC 60601-1-2
IEC 60645-1/ANSI S3.6
Two year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
