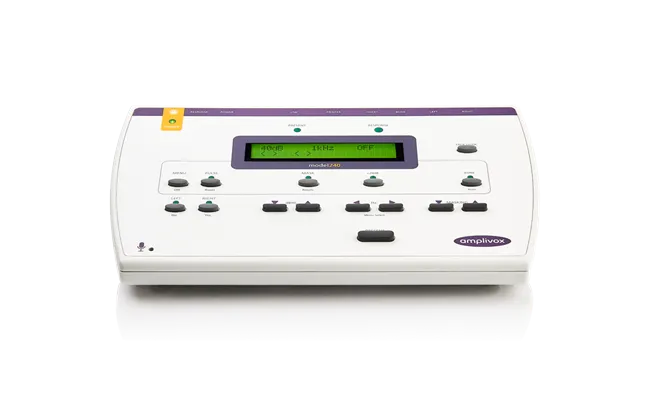

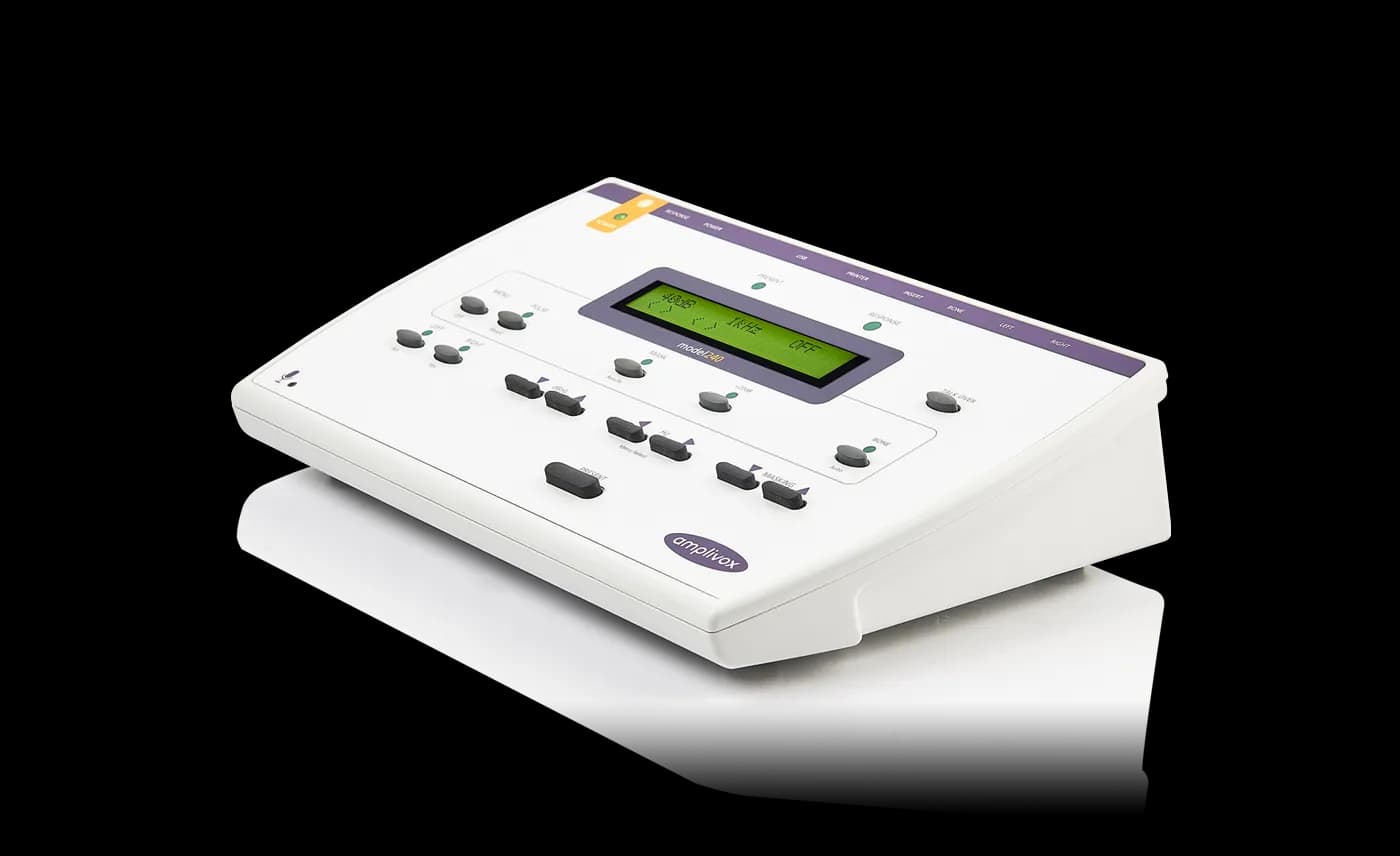

Model 240
Portable diagnostic audiometer
A cost-effective, portable and dependable diagnostic audiometer including air conduction (AC), bone conduction (BC), and masking functionality.
With no configuration required, an intuitive design and compact size, the Model 240 allows for immediate and effortless hearing loss diagnosis, making it the ideal tool for mobile hearing care professionals.
Test options
The Model 240 allows for clinical standards testing in any location as it benefits from a 125 to 8000Hz frequency range, an attenuation range of -10 to 120dBHL, manual pulse tone options and integrated talk over function.
The inclusion of air, bone conduction, and masking also help to differentiate between conductive and sensorineural hearing loss. For extended functionality and flexibility, the Model 240 can also be composed with dual transducer configurations including insert earphones and standard TDH transducers.
Key features
- Air and bone conduction testing
- Manual and automatic air conduction testing
- Tone selection: pure, pulsed, warble
- Narrowband masking
- Optional battery power function
- Integrated talk over function
- Third-party EMR connectivity
- Intuitive and ergonomic design
- Compact, lightweight and portable
Data management
With the benefit of an internal memory function, test results can be printed immediately or saved for future processing using the supplied Amplisuite software. The audiometer also offers single-click integration to third-party Electronic Medical Record (EMR) systems such as Noah and OtoAccess®. This enables the seamless transfer of results and data, for exceptional workflow efficiency.
Request more information
Included
- Standard audiometric headset
- Bone conduction headset
- Patient response switch
- Power supply with country adaptors
- Audiogram cards (50)
- Carry case
- Manual & software (available via website download)
Optional
- Amplivox Audiocups (noise-reducing enclosures)
- Masking earpiece
- Insert earphones
- Battery power function (internal)
- Thermal printer
- OtoAccess® database
- Booth leads
- USB cable (PC connection)
- USB portable power bank (external)
Consumables
High-quality consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of your equipment.
Specifications
Frequency range: 125 - 8000Hz
Attenuation range: -10 - 100dBHL
CPT codes
92552: Pure tone audiometry (threshold); air only
92553: Pure tone audiometry (threshold); air and bone
92582: Conditioning play audiometry
Standards
Audiometer Type 3
IEC 60601-1
IEC 60601-1-2
IEC 60645-1/ANSI S3.6
Two year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
