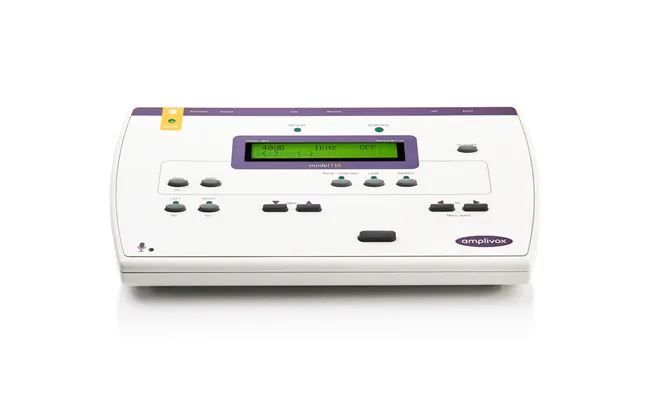

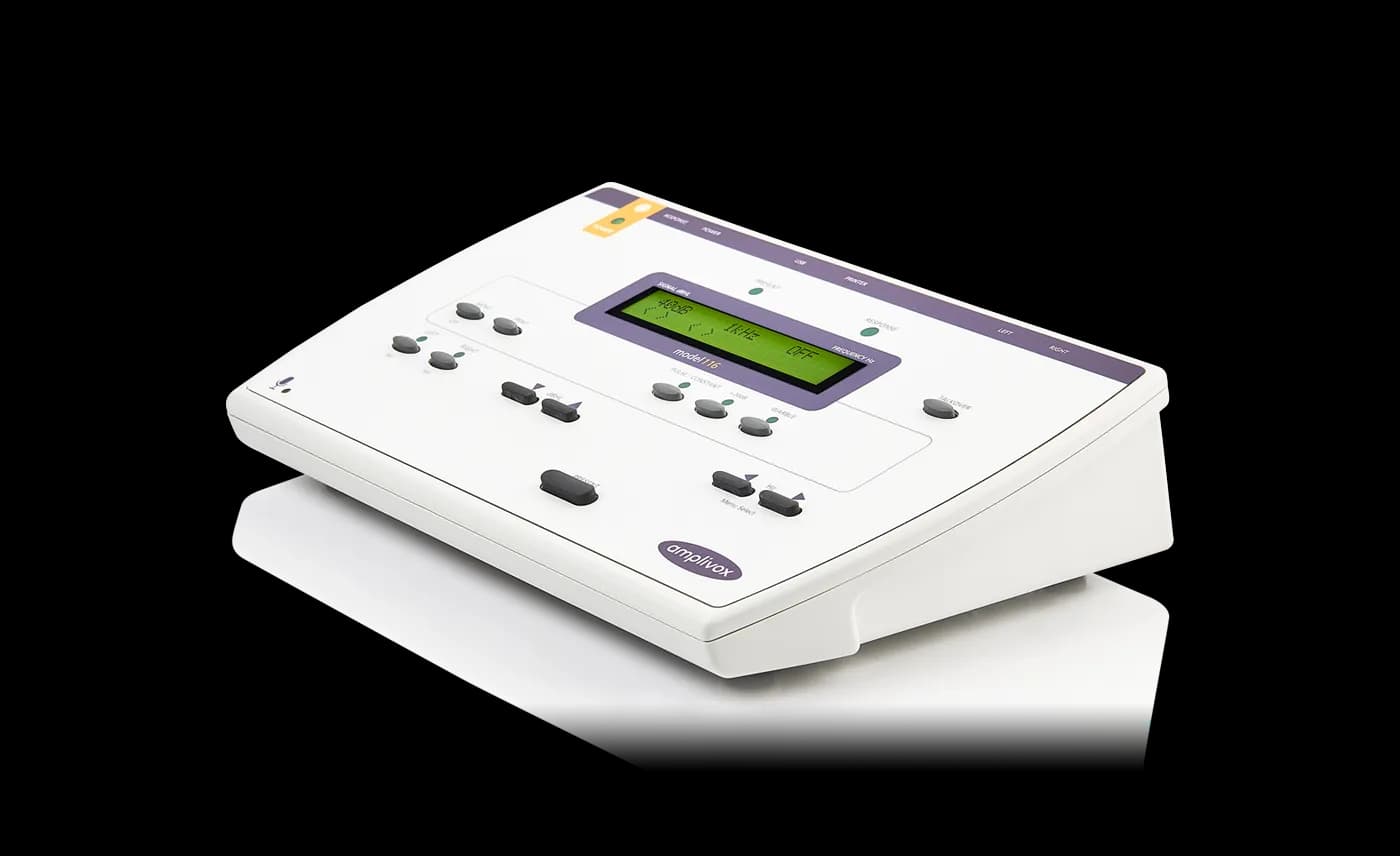

Model 116
Manual screening audiometer
The Model 116 is a cost-effective and easy-to-use screening audiometer for completing hearing tests within schools, primary care and GP surgeries.
The lightweight and robust design benefits any occupational health professional or audiologist who travels to conduct pure tone, warble and continuous hearing tests. With a soft key layout and clear display, the Model 116 offers the simplicity needed to conduct hearing tests in the most challenging environments.
Test routines
The Model 116 allows for pure tone audiometry in a wide variety of settings. The device includes a wide range of test frequencies to help identify hearing issues such as tinnitus, presbycusis and noise induced hearing loss with the use of pure tone, pulse, warble and/or continuous sound. Learn how to set-up and use the Model 116 in less than 3 minutes:
Key features
- Compact, lightweight and portable
- Extended frequency range: 125 – 8000Hz
- Attenuation range: -10 – 100 dBHL
- Automatic threshold saving
- Pure, pulsed and warble tones
- PC Software included
- Intuitive and ergonomic design
- Mains and optional battery power
Time saving
The audiometer includes all test frequencies and attenuation ranges required to perform a wide range of pure tone audiometry, such as standard threshold or sweep testing for school screening.
It offers pure, pulsed, warble and continuous tones which allow for the testing and identification of hearing issues in subjects with tinnitus, presbycusis and noise induced hearing loss (NIHL).
Automatic threshold results saving significantly reduces operator test times and increases attention of the test subject for more accurate results.
Data management
Test results can be manually recorded, printed via the optional portable printer and or transferred to PC applications such as Amplivox Amplisuite or Audibase to create both PDF or printed copy. This ensures results can be saved within third-party Electronic medical record (EMR) systems typically used within primary care.
Ergonomic design
Designed with the operator in mind, the Model 116 has a clear display panel and dedicated soft key layout, allowing total focus on the test subject and reducing the time it takes to complete hearing assessments.
Portability
At only 720g (1.58lbs), the lightweight and robust design of the Model 116 is perfect for healthcare professionals who need to travel. It also comes supplied with a custom carry case and all standard accessories. The optional battery power function can be used in all test settings, offering additional flexibility.
Request more information
Included
- Standard audiometric headset
- Patient response switch
- Audiogram cards (50)
- Power supply with country adaptors
- Carry case
- Manual & software (available via website download)
Optional
- Amplivox Audiocups (noise-reducing enclosures)
- Battery function
- Thermal printer
- Pediatric headband
- USB cable (PC connection)
- Audibase software
- USB portable power bank (external)
- Booth leads
Consumables
High-quality consumables and accessories to support patient testing programmes, reduce the risk of infection and optimise the performance and reliability of your equipment.
Specifications
Frequency range: 125 - 8000Hz
Attenuation range: -10 - 100dBHL
CPT codes
92552: Pure tone audiometry (threshold); air only
Standards
Audiometer Type 4
IEC 60601-1
IEC 60601-1-2
IEC 60645-1/ANSI S3.6
Two year warranty as standard. Please note: product availability may differ depending on country regulation and registration. For further information please contact us.
